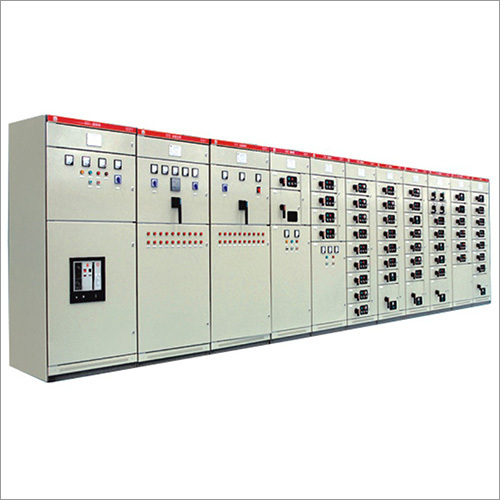

Low Voltage Switchgear

Low Voltage Switchgear
Low Voltage Switchgear
Product Code : GCK Type
Brand Name : BIG PAWER ELECTRCIAL TECHNOLOGY
Product Description
Low Voltage Switchgear is a new type switchgear which meets the requirement of continuous developing electrical market to computer interface, centralized control of power, simple installation and maintenance, short processing time to emergency and so on in the safe, economical, reasonable and reliable design principle on the basis of major electrical user requirements. The product has characteristics of high on-off capacity of, flexible scheme, easy combination, good practicality, novel structure and high class protection, etc and it can be used as upgrade products. The product is fit to domestic condition and has high technical performance. Relatively lower price can meet development needs of the electricity market and compete with existing external products in domestic market. GCK type low voltage switchgear is suitable to distribution system and substation of power plant, oil industry, chemicals industry, textiles industry, high-rise buildings, etc. In the field of large-scale power plants and petrochemical system where the automation degree is very high and has requirement of computer interface it used as three-phase AC power which the frequency is 50 or 60 Hz, rated working voltage is 380V, 400V or 660V, rated current is 4000A and the below in power generation and power distribution system and reactive power compensation device. While, it used as power conversion, distribution and control equipment. The product has national compulsory certification, ID: 2004010301128012.

 Standards and specifications

IEC439-1992 Low-voltage switchgear and control equipment
GB7251-2005 Low-voltage switchgear
ZBK36001-1989 Low voltage with drawable switchgear
JB/T9661-1999 Low voltage with drawable switchgear

Basic Information :

Model No.

GCK

Type

Distribution Metering Box

Structure

Protection

Additional Information :

Trademark

Big Pawer

Packing

Wooden Case

Standard

CE, ISO9001

Origin

Xiangyang, Hubei Province, China

HS Code

85437099

Production Capacity

2000 Sets Per Year


 Application and performance

3.1 GCK1 series motor control center is mainly combined by some combined motor control units and other functional units. These units are installed in cabinet in the way of upper and lower overlap. While connect each cabinet together by the horizontal bus set on the top of cabinet, the functional units in same cabinet is connected with vertical bus in parallel. The cabinet is divided into four mutual insulated area
which are horizontal bus bar room, vertical bus bar room, cable room and installation room. The functional unit is installed in respective room. When anyone is faulty, shall not affect other units to prevent expansion of the accident.

This product is in line with the standards of ZBK36001-89 "Low-voltage drawer-type switchgear" and adopts IP40 protection rating in IEC114. When all the doors and plates are opened or closed, as well as functional units are in out position, it can meet the corresponding protective level. That is to guarantee personal safety.

The product is set reliable grounding system and the protective circuit. All functional units are able to break short-circuit current in accordance to regular performance requirements. Input unit has three paragraphs protection characteristics. Therefore, we can guarantee the reliability of electricity supply and security of equipment and system.

All the functional units can be connected with the PC line board (PLC) or computer processors through interface parts. As an executive unit of auto control system, it can provide other functional units and combination on the basis of user's requirements. The product applies to AC circuit of 380V, 50Hz.

Model

Item

Standard

                            GCK 1

Standard

GB7251-2005, JB/T9661-1999

Protection Level

IP40, IP30

Rated voltage (V)

AC 380

Frequency (Hz)

50

Rated insulation voltage (V)

660

Working conditions

Circumstance

Indoor

Attitude

No more than 2000m

Ambient temperature

-50ºC~+40º the minimum temperature is -30º during storage and transportation

Relative humidity

No more than 85%

Control motor capacity (KW)

0.45~155

Mechanical life (Times)

500

Rated current(A) Rated short-time withstand current (KA)

Horizontal bus bar

1600\3150

Vertical bus bar

630\1000\1250

Socket connector of main circuit contacts

200\400\630

Socket connector of auxiliary circuit contacts

20

Maximum current of feeder circuit

630

Acceptation power circuit

1000\1600\2000\2500

Effective value

50\80

Peak value

105\176

Withstand voltage(V/1 min)

2500
